Quick Details

  • Place of Origin: Japan
  • Brand Name: TOSHIBA

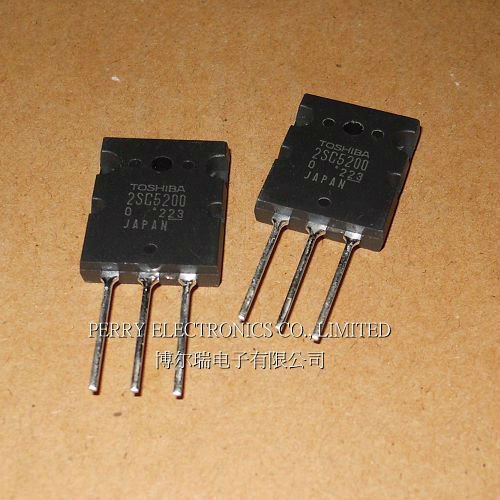

  • Model Number: 2SC5200
  • Type: POWER AMPLIFIER APPLICATIONS TRANSISTOR
  • Package Type: Throught Hole
  • Transistor: 2SC5200
  • Description: TRANS NPN 230V 15A TO-3PL
  • Lead Free Status / RoHS Status: Lead free / RoHS Compliant
  • Standard Package: 25
  • Package / Case: TO-3PL
  • Packaging: Tube

Packaging & Delivery

Packaging Details: 25pcs/Tube standard package, safe and strong external packing.
Delivery Detail: 3-7days

Specifications

2SC5200
1>global presence
2>fast delivery
3>sample offering
4>long-term supply

2SC5200











Standard Package

25

Category

Discrete Semiconductor Products

Family

Transistors (BJT) - Single

Transistor Type

NPN

Current - Collector (Ic) (Max)

15A

Voltage - Collector Emitter Breakdown (Max)

230V

Vce Saturation (Max) @ Ib, Ic

3V @ 800mA, 8A

DC Current Gain (hFE) (Min) @ Ic, Vce

80 @ 1A, 5V

Power - Max

150W

Frequency - Transition

30MHz

Mounting Type

Through Hole

Package / Case

TO-3PL

Supplier Device Package

TO-3P(L)

Packaging

Tube







Features

> Complementary to 2SA1943

> Recommended for 100W High Fidelity Audio Frequency Amplifier Output Stage.





Features

> High Current Capability: IC = 15A.

> High Power Dissipation : 150watts.

> High Frequency : 30MHz.

> High Voltage : VCEO=230V

> Wide S.O.A for reliable operation.

> Excellent Gain Linearity for low THD.

> Thermal and electrical Sp ice models are available.

> Same transistor is also available in:

-- TO3P package, 2SC5242/FJA4313 : 130 watts

-- TO220 package, FJP5200 : 80 watts

-- TO220F package, FJPF5200 : 50 watts

> Recommended for 100W High Fidelity Audio Frequency Amplifier Output Stage.
